Step 1: Assessing the Warehouse’s Lighting Needs
The 500,000 sq ft warehouse had an existing lighting system that was both inefficient and underperforming in terms of brightness and uniformity. The warehouse had several areas with insufficient lighting, resulting in dark spots that made tasks such as picking, packing, and inventory management difficult. Additionally, the older system consumed a significant amount of energy, contributing to higher operational costs.
Clayton Rix took a hands-on approach to the project by walking the job site and performing a comprehensive photometric analysis. This process involved measuring the existing lighting levels and comparing them with industry standards for warehouse lighting. Clayton identified several issues, including:
- Inconsistent illumination across different sections of the warehouse, with some areas experiencing dim lighting.
- Excessive energy consumption from outdated fixtures.
- Poor light distribution, creating shadows and making tasks harder for warehouse employees.
The goal of the project was clear: to replace the old system with LED lighting that would provide uniform, high-quality light while reducing energy consumption and operational costs.
Step 2: Designing the New LED Lighting Layout
With the existing lighting system assessed and the goals for the upgrade established, Clayton Rix and the team at Dobson Electric set to work designing a new LED lighting layout. The new system aimed to:
- Increase visibility by providing bright, consistent light throughout the entire warehouse.
- Improve energy efficiency by using LED fixtures that would reduce power consumption while offering superior illumination.
- Enhance safety and productivity by ensuring that all areas of the warehouse were well-lit for better worker performance and fewer accidents.
Clayton provided a photometric layout that mapped out the warehouse’s lighting requirements, identifying the optimal placement and type of fixtures needed. The LED lights chosen for the project from Elite Lighting were specifically designed for high-ceiling spaces like the warehouse, with features that included:
- High lumen output for maximum brightness
- Wide beam angles to ensure even distribution of light
- Energy-efficient operation that reduces electricity usage
- Long lifespan, which means lower maintenance and fewer replacements
With the new layout in place, it was time to begin the installation process.
Step 3: Installation and Execution
The installation process for a 500,000 sq ft warehouse is a significant undertaking, requiring careful planning and efficient execution to minimize disruption to daily operations. Dobson Electric, with Clayton overseeing the project, took on the task of removing the old fixtures and installing the new LED system.
Key steps in the installation process included:
1. Removal of Existing Fixtures
The first step was to safely remove the outdated fixtures and dispose of them properly. This was a labor-intensive process, requiring the expertise of Dobson Electric to ensure that no damage occurred to the existing electrical infrastructure during the removal phase.
2. Installation of LED Fixtures
The team then installed Elite Lighting’s LED high-bay fixtures, which were mounted at strategic locations to ensure even light distribution. The new fixtures were designed for high-ceiling applications, and their energy-efficient design helped reduce the number of fixtures needed while still providing the required lighting levels.
3. Calibration and Testing
Once the installation was complete, Clayton Rix led a thorough testing phase to ensure the lighting levels met the specifications laid out in the photometric layout. This included:
- Verifying the brightness across different areas of the warehouse.
- Ensuring uniform light distribution and eliminating any dark spots.
- Fine-tuning fixture angles to minimize glare and optimize light focus on key areas, such as aisles and workstations.
Step 4: The Final Results

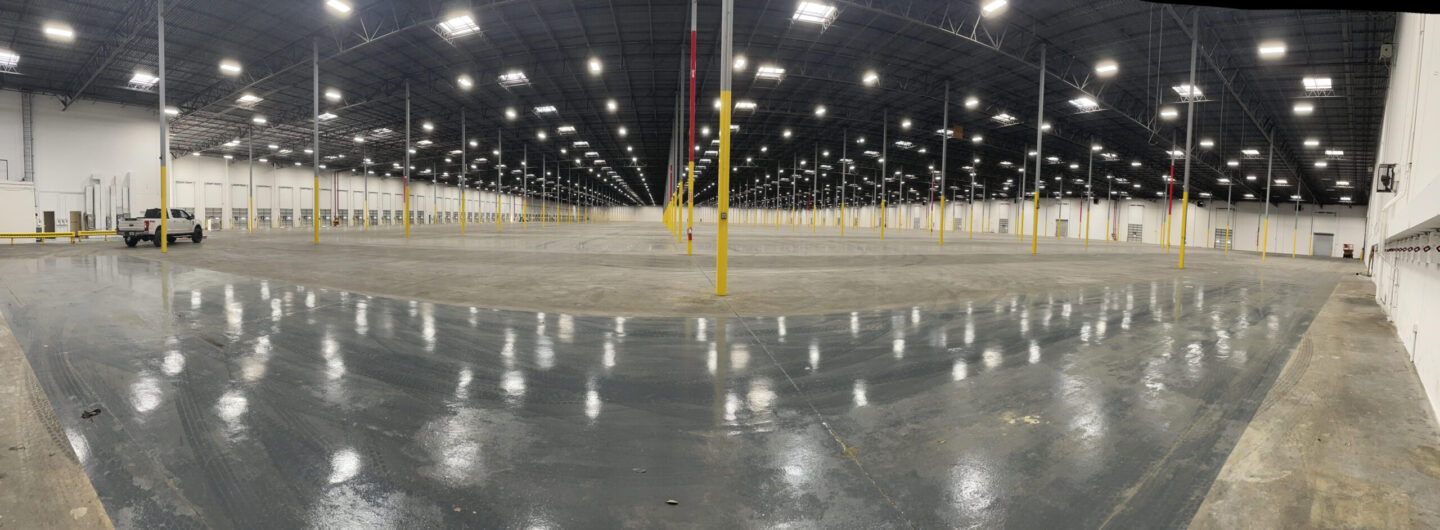

The lighting upgrade, completed over the span of six weeks, resulted in a transformation of the warehouse environment. Key benefits included:
1. Improved Lighting Quality and Uniformity
The most noticeable change was the improved visibility across the entire warehouse. The new LED lights provided a bright, consistent illumination that eliminated shadows and dark spots, making it easier for warehouse workers to perform their tasks more efficiently. This resulted in better overall performance, quicker product handling, and increased safety.
2. Significant Energy Savings
By switching from the old lighting system to Elite Lighting’s LED technology, the warehouse saw a dramatic reduction in energy consumption. LED lights use significantly less power than traditional fixtures, providing the same or even better illumination while reducing operational costs. The energy savings were expected to result in a substantial return on investment for the client.
3. Lower Maintenance Costs
LED fixtures have a longer lifespan compared to traditional lighting, which means lower maintenance and replacement costs. The new system required less upkeep and would provide reliable service for many years to come.
4. Enhanced Safety and Productivity
The even and bright lighting created a safer environment for employees, reducing the risk of accidents and improving work efficiency. With better visibility, employees were able to move around the warehouse with confidence and perform tasks more quickly, resulting in increased productivity across the board.
A Successful Warehouse Lighting Upgrade
This project, which involved Clayton Rix, Dobson Electric, and Elite Lighting, successfully transformed a 500,000 square foot warehouse into a safer, more efficient, and more productive environment. By utilizing LED lighting technology and a carefully planned photometric layout, the warehouse now boasts improved lighting quality, significant energy savings, and lower maintenance costs.
This warehouse lighting upgrade exemplifies how innovative lighting solutions can enhance operational efficiency, reduce costs, and create a safer and more productive environment in large-scale industrial settings.
